LED - DRIVER:
DESCRIPTION:
The driver powers the LED light systems and is suitable for connecting to all of the most popular power systems used today. It has an integrated switching function and connections for all LED lights available.
IMAGE:
STANDARDS:

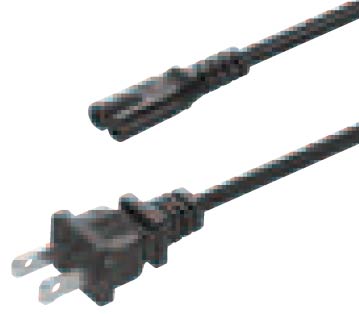

Power plug cable included (length 78 3/4”)

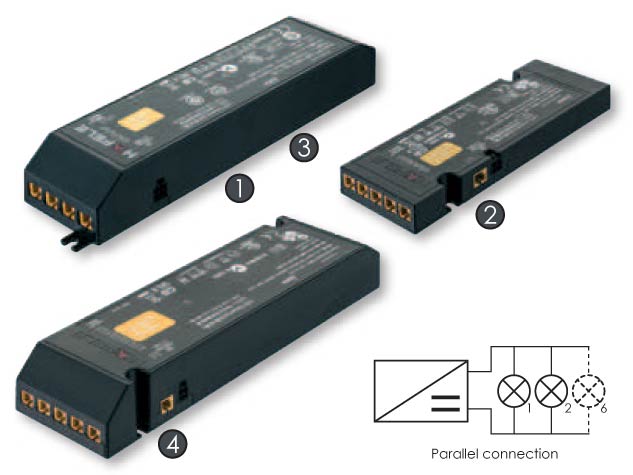

| CODE: | (1) LED-DRIVER-15 | (2) LED-DRIVER-20 | (3) LED-DRIVER-30 | (4) LED-DRIVER-60 |
| Wattage | 0 - 15 | 0 - 20 | 0 - 30 | 0 - 60 |
| Length | 5 1/2" | 5" | 7 11/16" | 8 3/16" |
| Width | 1 3/4" | 2" | 1 3/4" | 2" |
| Height | 13/16" | 9/16" | 1 1/8" | 2 1/4" |
| Input Voltage | 100 - 240 V; 50 - 60Hz | |||
| Output Voltage | DC 12 V | |||
| Number of Slots | 6 slots for 12 V lights, 1 slot for switch, 1 slot for primary lead | |||
| Output Current | 1.25A | 1.67A | 2.5A | 5A |
OPTIONS:

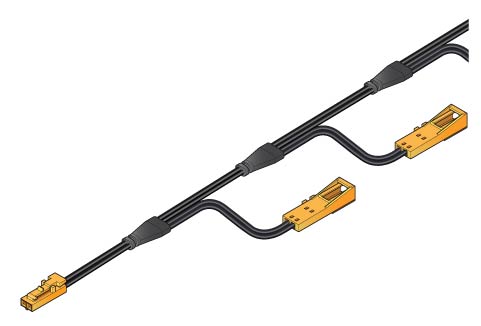

4-Way Extension Lead (Daisy Chain Cable)
4 LED lights can be connected with a single lead from an LED output using the 4-way extension.

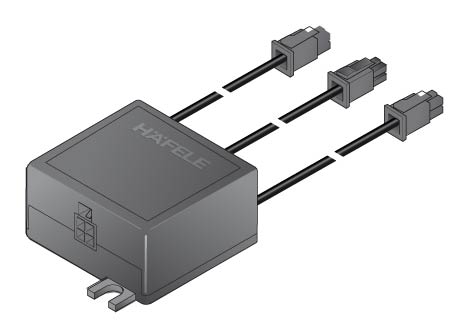

Multi Driver Box
Up to 3 LED drivers can be controlled with 1 switch. Several drivers and therefore several lights in the room can be switchedon and off with one switch. These can also be 3 of the same driver if you require additional power in a 12 V system, for example.

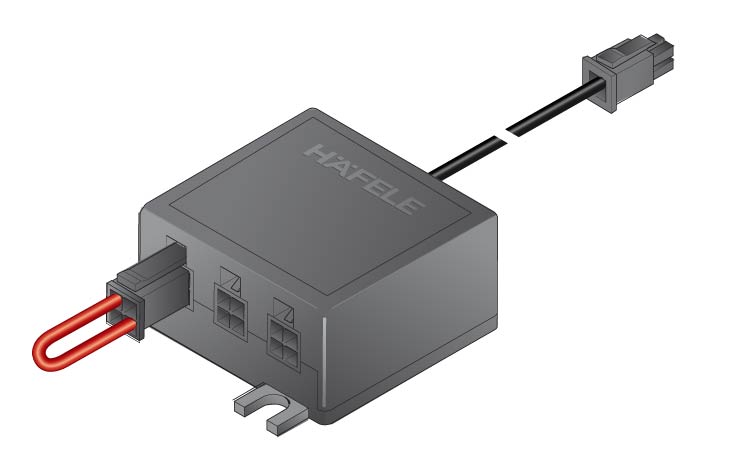

Multi Switch Box
1 LED driver operated by up to 3 switches. Allows the LED driver to be switched on and off from different positions.
- Lead length from driver to switch max. 19’ 8”
- Max. 30 W per light slot output.
- Typically you will use multiple Drivers and with a Multi Driver Switch you can control up to 3 Drivers with 1 LED-SWITCH
